Reverse lights for auto to manual.

Been getting alot of PM's lately asking how to wire up reverse lights after auto to manual swap. Its been like 3 years since I did the swap and I suck at giving directions so bare with me. My car is 02 if your wondering.

First off here are all the tools I used:
Heat shrink
Crimp on connectors for 14-16 wire
Wire crimpers and cutters
Wire strippers
lighter or heat gun
electric tape
ratchet with 8mm and 10mm socket if i remember right
Some 14-16 gauge wire. Any color is fine I used green and black.


1.) Remove glove box and disconnect battery.


2.) Find this relay. Its on the back of the glove box.


3.) Next you wanna find this grey plug.


4.) Now that you have located those two things you wanna cut the white with two grey stripes wire coming from the relay about half way up. Then you wanna cut the yellow with white stripe and the green with white stripe wires coming from the plug.




6.) Tape up the yellow and green wire out of the plug. And tape up the white with grey stripes wire going into the harness.



7.) Strip ,crimp and heatshrink a wire going from green wire to the white wire going into the relay.



8.) Strip ,crimp and heatshrink a decent length of wire going from the yellow wire from dash to a circle terminal.

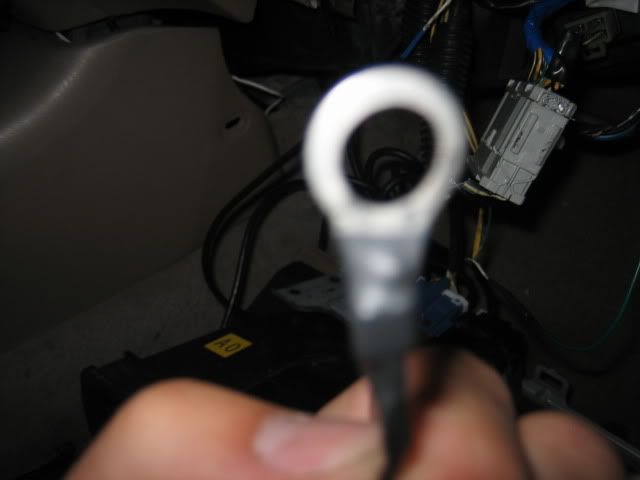

9.) Find somewhere to ground the circle terminal. I used one of the studs right above all the wire harnesses.


10.) Make sure all you connections are goods and that they all insulated. Reconnect the battery turn the ignition to 2nd position and put the car into reverse. If everything was done right the reverse lights should come on. Congratulations your done now just put everything back into the wire harnesses and tape them up and your good to go.

Hope this DIY helped and didnt confuse the hell out of people if anyone has any problems or questions send me a PM i usually check here after work around 6pm pst.


·
K-Series Specialist
Joined
·
2,651 Posts
New info...

If you don't have a white wire coming out of the relay, the wire you need to cut is the green w/black stripe. i believe the 04-05 has this change, possibly 03 as well.


·
Registered
Joined
·
3,758 Posts
Just finished doing this.. didn't take that long at all, i can't believe the shop i went to for my swap didn't effing do this themselves.

Anyway, just a small note, I didn't have a yellow with white stripe wire coming from the gray plug. It was straight yellow. I have an 03 car. Maybe that's why.

Either way, glad I finally have reverse lights, so now I can see when I'm backing out.


·
Registered
Joined
·
324 Posts
Is this if you use manual engine harness, auto dash harness, and auto ecu or some other combination. Im guessing this is manual engine harness at least.


·
Registered
Joined
·
3,758 Posts
Is this if you use manual engine harness, auto dash harness, and auto ecu or some other combination. Im guessing this is manual engine harness at least.
I'm not sure if my engine harness was manual, the shop that did my k-swap for me did the wiring themselves, but forgot to do the reverse lights.

But when I got my K-swap parts, I don't recall it coming with engine harness, so my guess is i happened to use auto harness for everything.

How do you ground the wires by the fuse box to make it start? Tap them or cut them if u cut them do u ground clip side or harness side?
there is no grounding of wire coming from Fuse Relay Box. I cut one wire from Fuse Box and attach it to one wire I cut coming from the engine side of the harness.

The yellow wire that I cut on the engine side of harness is grounded.


·
Registered
Joined
·
5 Posts
help....

I need help with the green/white and yellow white wires. I don't have those I only have yellow/red and yellow/black on the harness.... If I ground yellow/black, car won't start. My car is a 01 civic lx coupe auto to manual swap with auto dash and engine harness. :eek3:


·
Registered
Joined
·
199 Posts
awesome diy have a question though.
is this wiring conversion for reverse lights similar for the 6th gen models as well? My 98 lx has an auto to manual swap and reverse lights dont work.


·
Registered
Joined
·
172 Posts
How does this work if you have an auto dash and engine harness because the wires that you said coming from the plug are no where to be found any help would be greatly appreciated
